The Garratt Locomotive
Proposals on a Garratt theme
The first five images courtesy of the New Zealand Railway & Locomotive Society
Click on each image to see a larger version

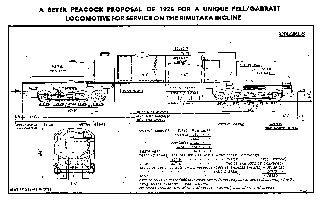

Beyer Peacock 1926 - a unique Fell/Garratt for the Rimutaka Incline(NZRLS)
Beyer Peacock 1931 - a geared Garratt for the Rimutaka Incline(NZRLS)

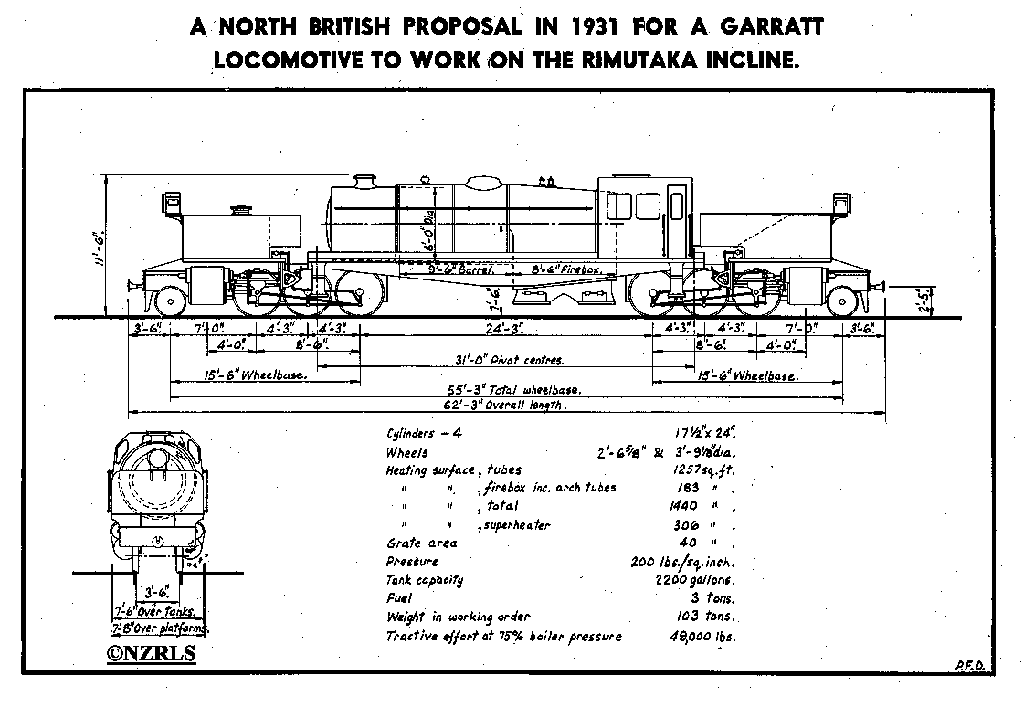

North British 1931 - a Garratt for the Rimutaka Incline(NZRLS)

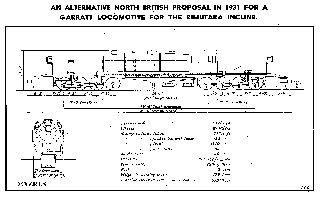

North British 1931 - an alternative Garratt for the Rimutaka Incline(NZRLS)
Vulcan Foundry 1931 - a Climax/Garratt for the Rimutaka Incline(NZRLS)
Ed McLaughlin used to be the General Manager of the Cumbres & Toltec Scenic Railroad in the USA. He had an operating problem known as Cumbres Pass - 9 miles of 1 in 25 (4%). One evening over a few beers they came up with this idea to use the running gear of two unrestored ex D&RGW K-37 2-8-2's. Ignore the geographical error in the picture - Chama is still in New Mexico as it always has been!(Ed McLaughlin).
LIMA Prelimary design 605, Garratt style Hump Shay, 6 cylinder 4 truck shay 1927 (courtesy George R. Kadelak)
LIMA Prelimary design 613, Garratt style Hump Shay, 6 cylinder 4 truck shay 1927 (courtesy George R. Kadelak)
LIMA Prelimary design 650, Garratt style Hump Shay, 6 cylinder 4 truck shay 1928 (courtesy George R. Kadelak)
A model of the proposed NSWGR "AC38" 4-6-4+4-6-4 as shown at a Sydney model railway exhibition. I have no information about who built it so, hopefully, someone will provide details. (Malcolm Cluett)
I bought this and the next off of Ebay. A Beyer Peacock drawing dated 1931 of a proposal for a 4-6-0+0-6-4 for the Great Western Railway - needless to say nothing came of it. (G. Hamilton Collection)
Another to upset the GWR fans. A Beyer Peacock drawing dated 1931 of a proposal for a 2-8-0+0-8-2 for the Great Western Railway - needless to say nothing came of it. (G. Hamilton Collection)
Peter Bagshawe provided this - a 1954 Krupp proposal for the CF Amboim (Peter Bagshawe)

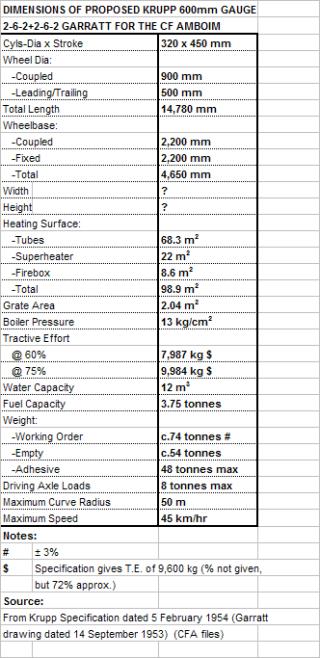

Dimensions for the CF Amboim Krupp proposal (Peter Bagshawe)
USSR proposal for a low axle load 4-8-0+0-8-4 for forestry railways - early 1930's
A link to an L.D.Porta Garratt proposal for the ACE3000 scheme from The Ultimate Steam Page
A.E.Durrant's 2-8-2+2-8-2 NGG17 proposal for the Alfred County Railway
There was a proposal in August 1944 for 10 760mm gauge Garratts to be sent to Yugoslavia - to be based on a modified version of
one of the types produced earlier in the war for the british War Department - probably those for Sierra Leone

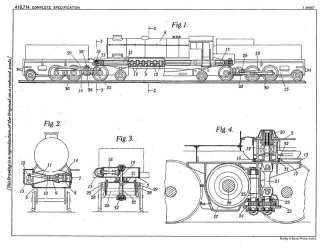

Johann Kupka patent for a 6 cylinder geared 2-6-2+2-6-2 proposal (courtesy Gottfried Wild)
Egyptian proposal to use surplus parts to build a Garratt (courtesy Gottfried Wild)

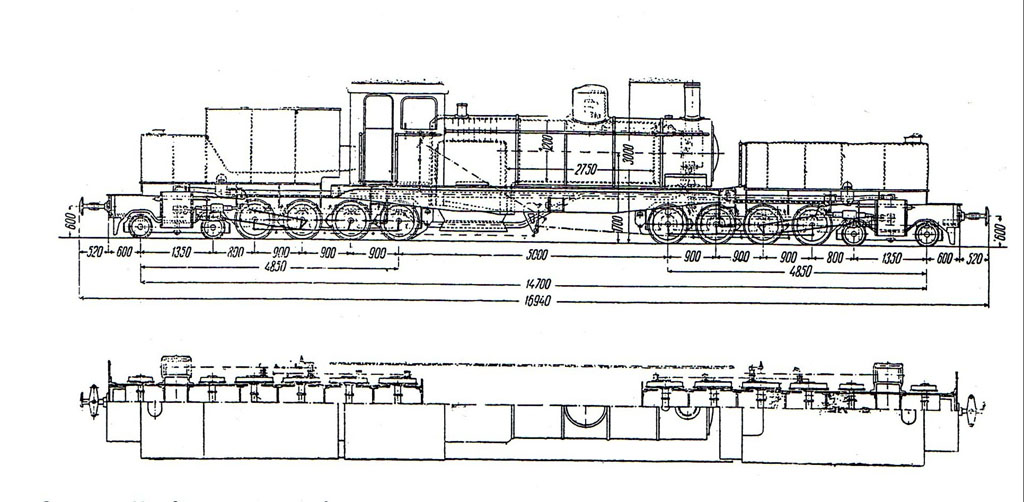

Henschel 1936 design for an 8 cylinder compound garratt(courtesy Gottfried Wild)
Beyer Peacock proposal for an dual fuel (coal/oil) 2-8-2+2-8-2 garratt for CFR Romania(courtesy Gottfried Wild)
Wishful thinking - a Beyer Peacock proposal 2-6-2+2-6-2 for the, usually broke, Sligo, Leitrim and Northern Counties Railway
