The International Steam Pages


TC1015

TC1015

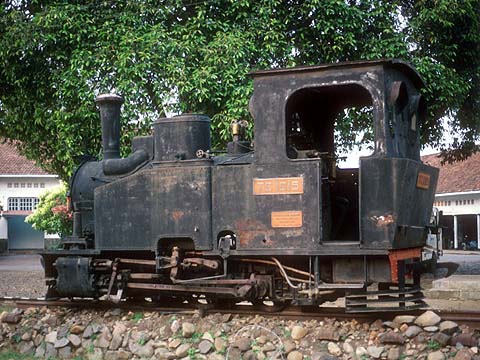

TC1015 was constructed by Hartmann (4425/1920). It was originally Staats Spoorwegen 515T. This 0-6-0T had two outside cylinders 240 x 340 mm with driving wheel diameter of 660 mm. Boiler pressure was 12.0 kg/cm2, grate area 0.5 m2 with a heating surface of 19.5 m2 and a superheater surface of 9.1 m2. Overall weight was 12.7 tons. TC1015 is preserved inside Manggarai workshops in Jakarta and is not readily viewable unlike all other preserved locomotives in Java. These 600mm gauge locomotives worked the branches around Cikampek and Karawang in West Java until the early 1970s, the other 600mm branch at Ambulu in East Java having closed rather earlier.


This photograph is courtesy of Rob Dickinson (1983).
